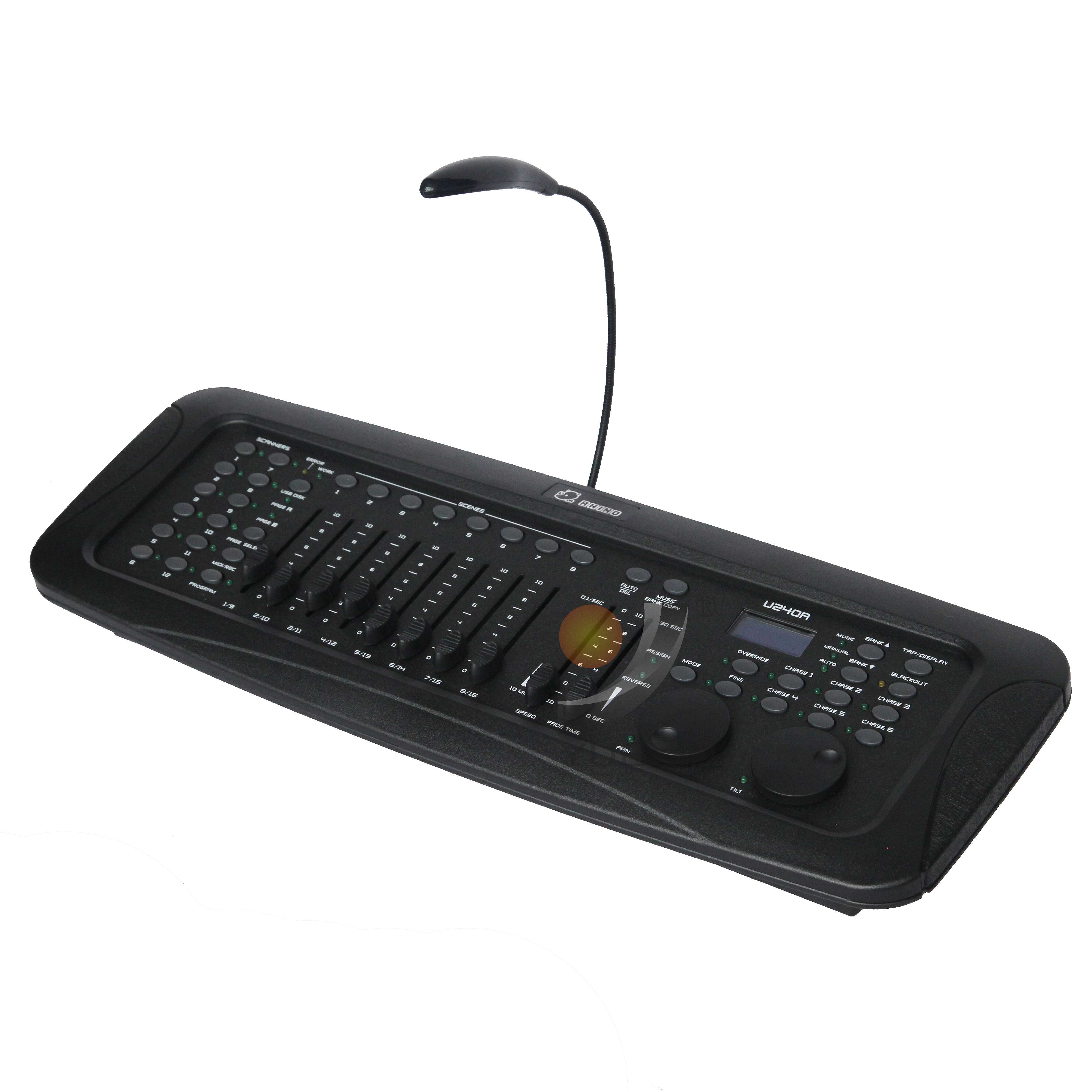

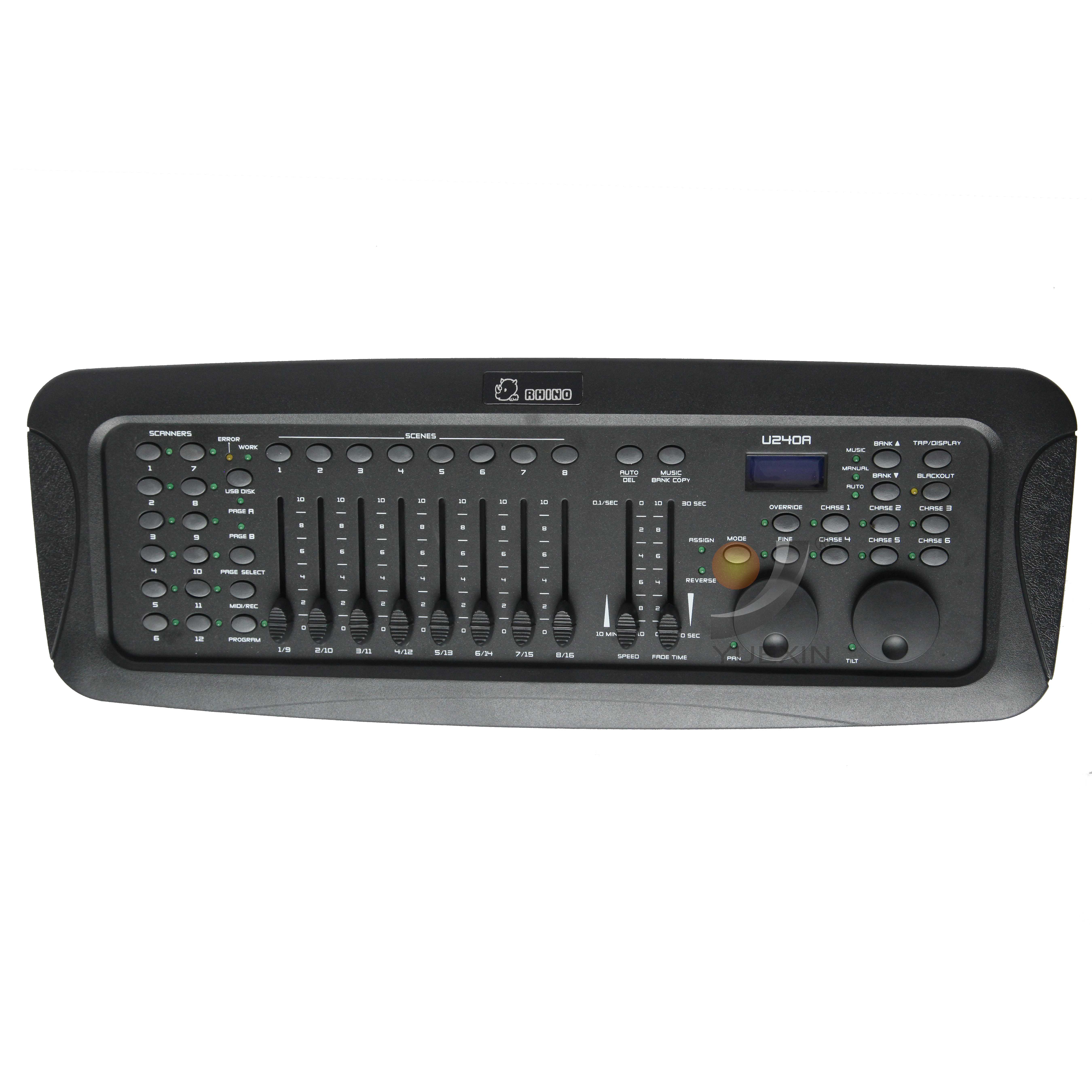

RHINO U240A CONSOLE

PRODUCT SEREIS



Desription:

12 scanners of 16 channels each
 6 programmable chases have 30 banks each
 20 banks have 8 programmable scenes each
 8 slider for manual control of channels
 2 assignable wheels for easy of movement
 Auto mode program controlled by speed
and fade time sliders
 All fade time adjustable
 In fade mode, ALL (all channel) or X/Y
only could be selected separately.
 Reversible DMX channels fixture to react
in opposition to others in a chase
 8 channel or 16 channel mode
 Fine adjustment for wheel PAN and TILT
 Blackout master button
 Manual override button allow you to grab
any fixture on the fly
 USB disk backup and uploaded
 Power failure memory
 Data backup & restore with U-disk
 LED lamp connector
 Power input: DC 9-12V 1000mA
 Audio input: by built-in microphone or line
in, 100mv-1vpp

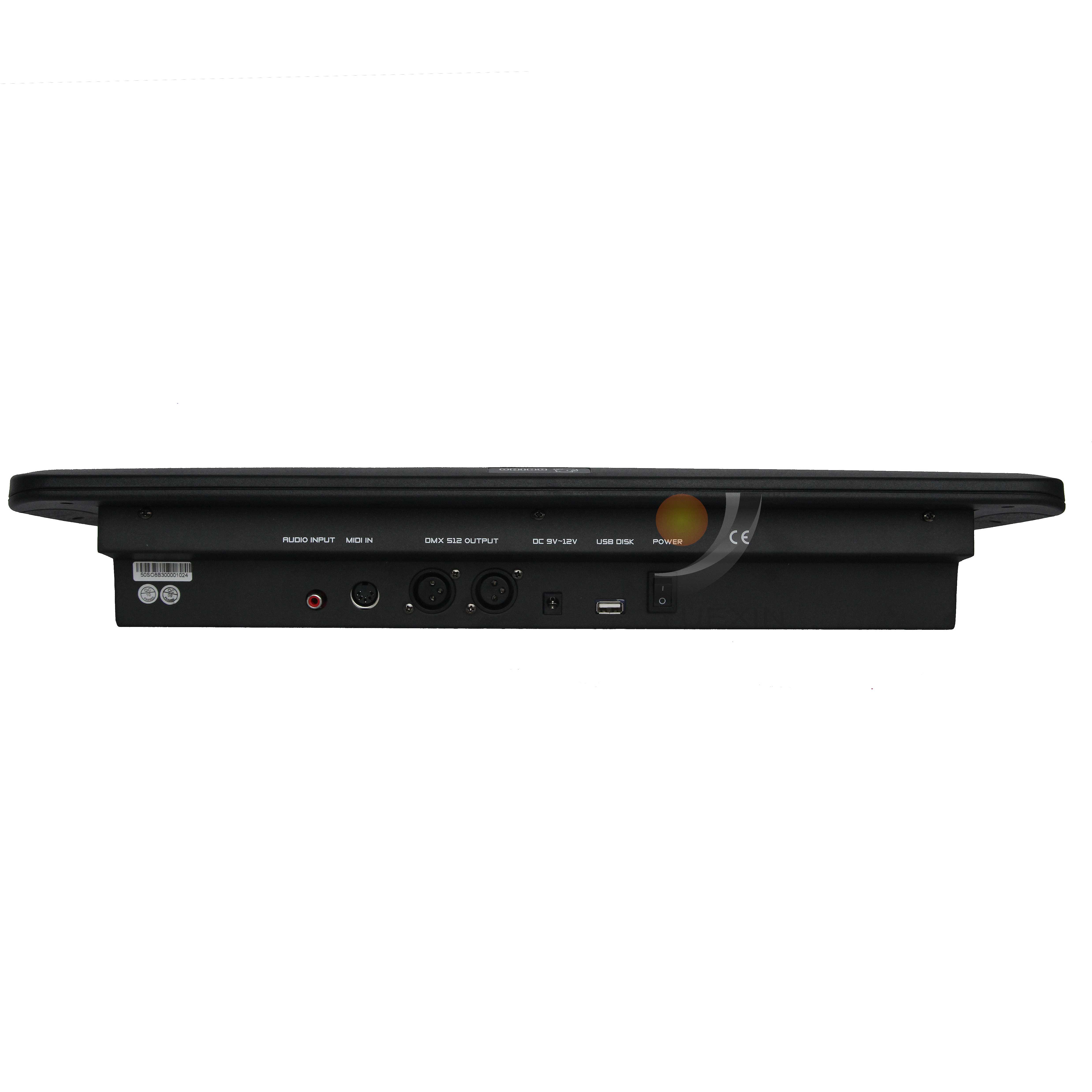

 DMX in/out: 3 pin male/female XLR
 Midi in: 5 pin multiple socket

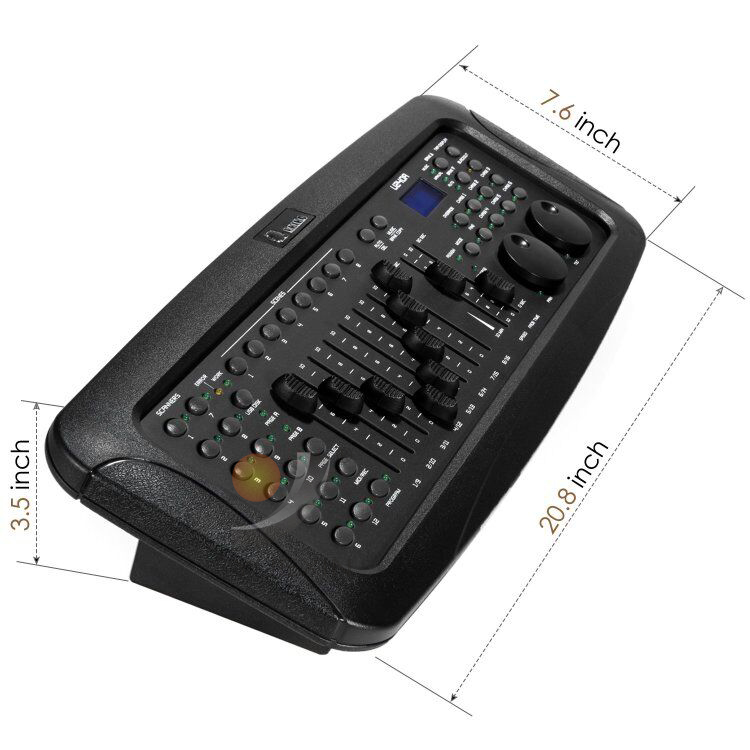

 Dimension : 527mm × 192mm ×87mm
 Net Weight: 2.65kg

Model: YX-CL1350
