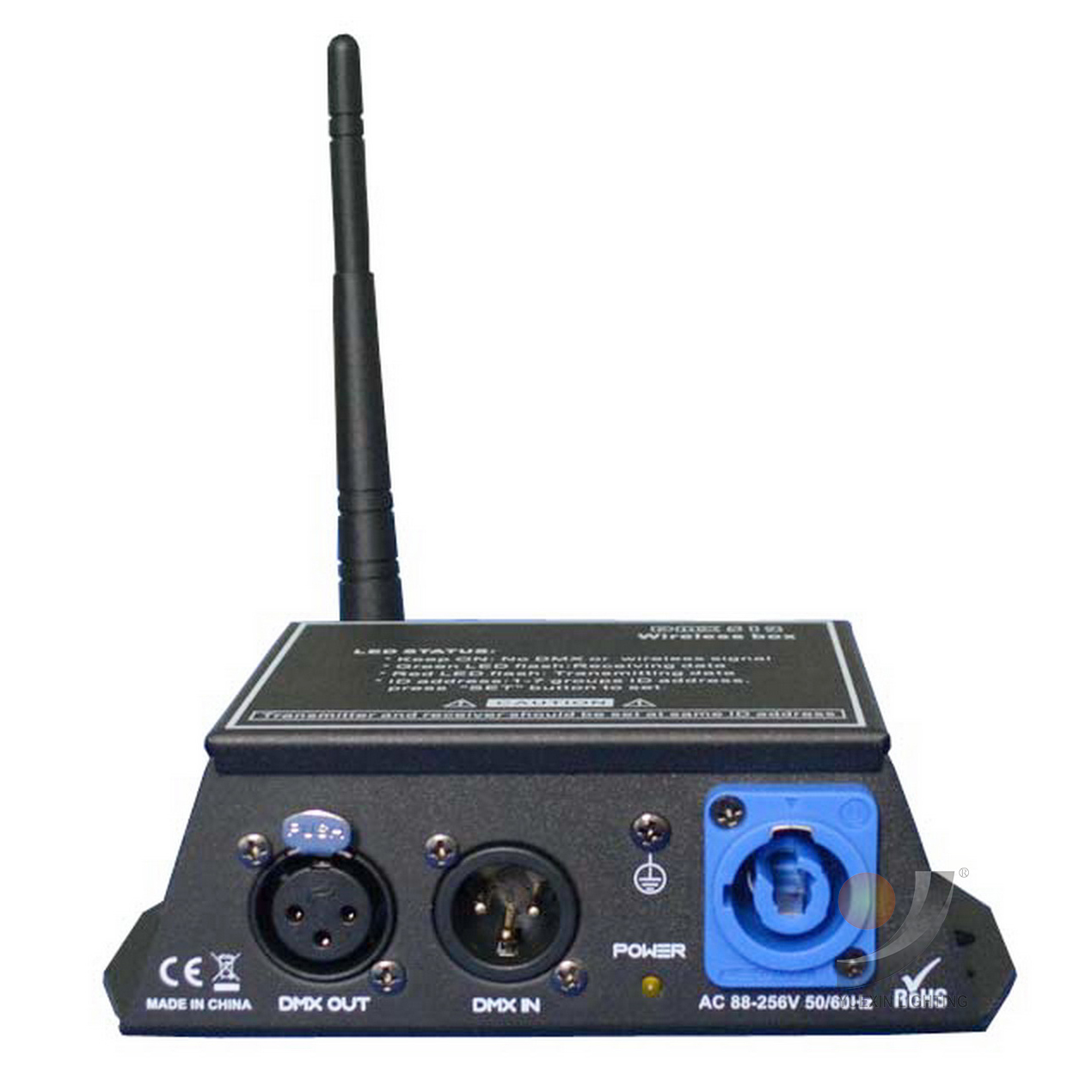

Wireless DMX Controller

Desription:

Tricolor LED displaying
126 channels, automatic jumping frequency
High anti-jamming ability to ensure working reliability.
7 groups ID code settable, User can use 7 groups individual wireless net without any interfere each other in the same place.
free-lead solder
Input voltage: AC88～256v 50/60HZ
Communication distance: 300M
Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
Receiver sensitive: -106dBm
DMX signal port: 3 Pin plug
Antenna configuration: standard 100mm spiral SMA antenna, the other optional large gain antenna

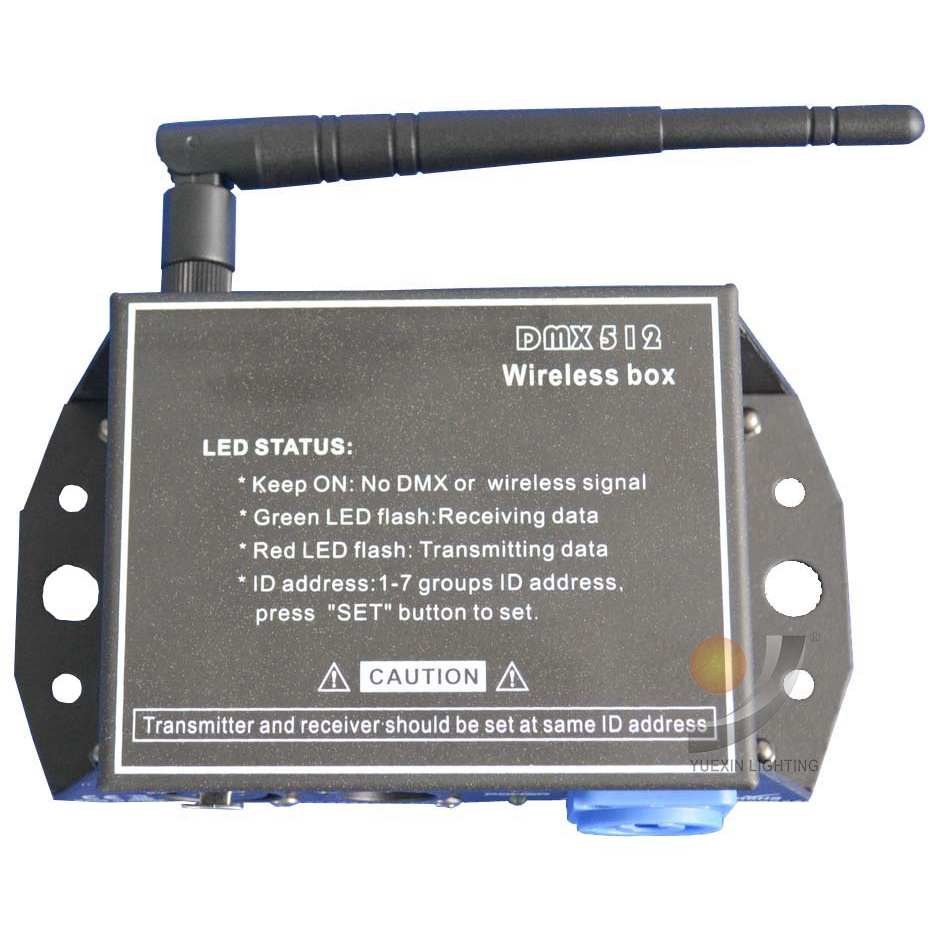

ID code and LED color corresponding correlation：
1: RED
2: GREEN
3: RED+GREEN=YELLOW
4: BLUE
5: RED+BLUE=PURPLE
6: GREEN+BLUE=CYAN
7: RED+GREEN+BLUE=WHITE
