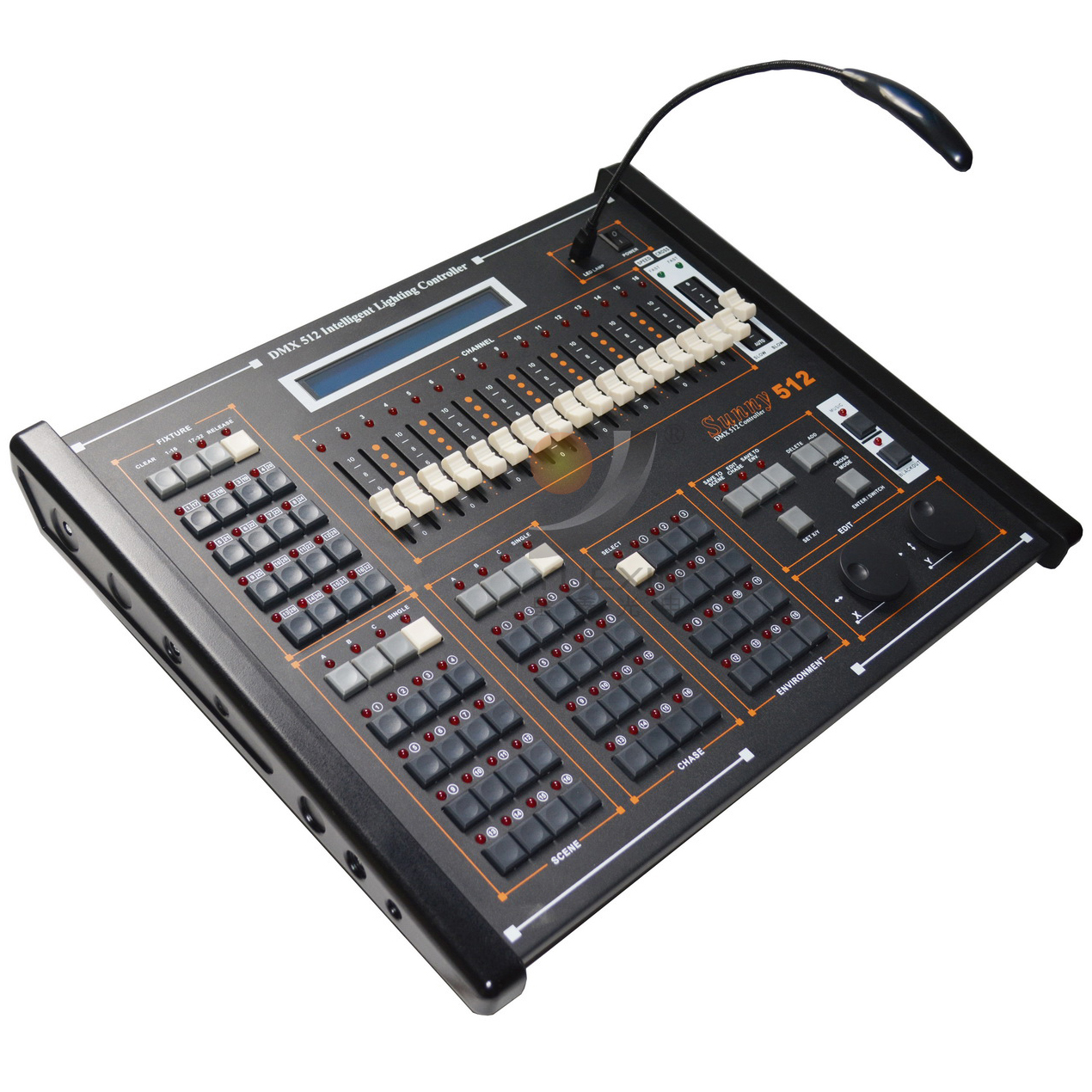

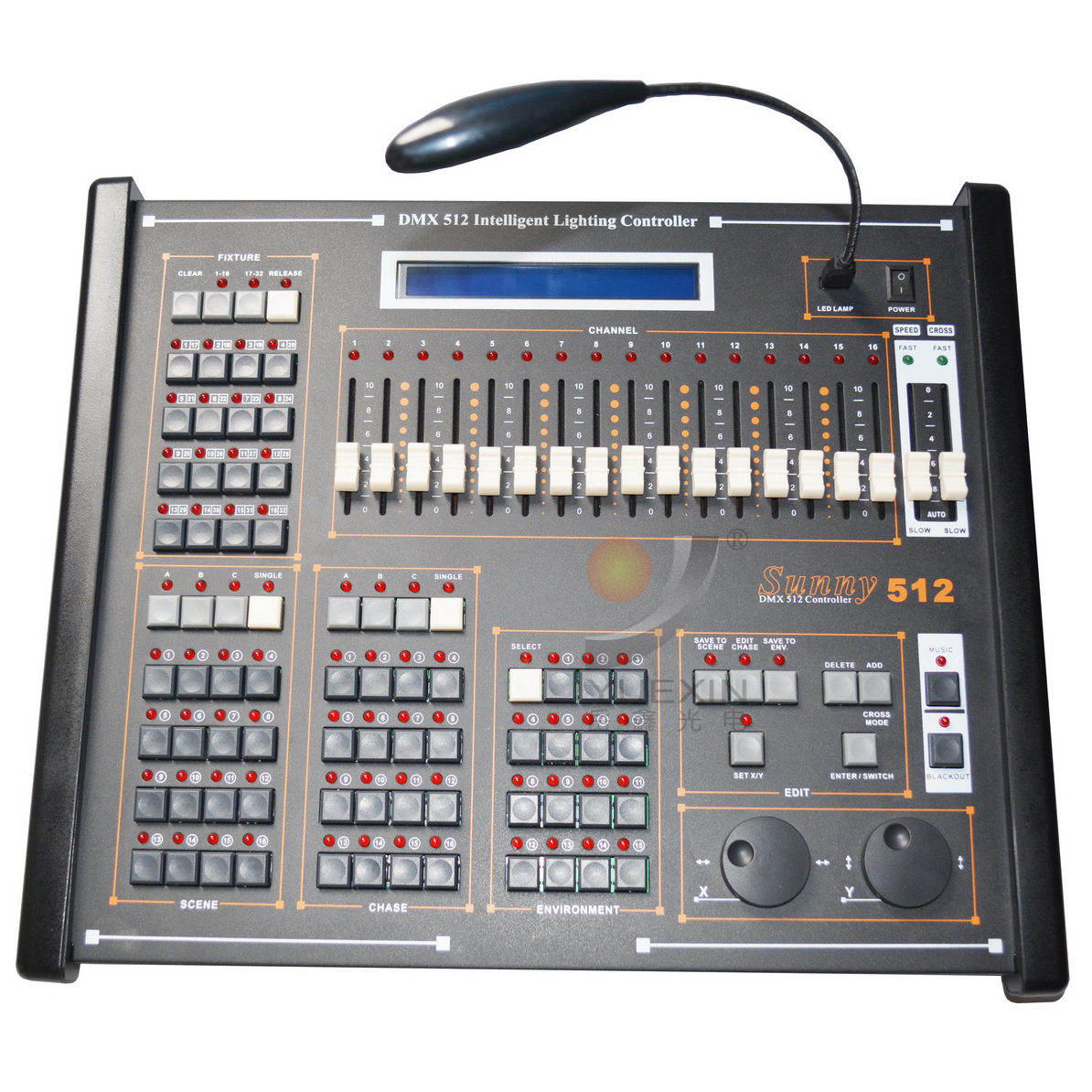

Sunny 512 console
DMX512/1990 standard,512 DMX control channels.
4 output with separate optical isolated
Up to 32 scanners may be connected with a maximum of 16 channels each.
A large back light LCD to display operation parameters
16 channel faders plus 1 speed and 1 cross control fade.
1600 chase steps maximum. 48 chases - up to 99 steps each. Speed and cross time of each step can be set separately. Speed adjustable by music active or manual mode.
The time range of both SPEED fade and CROSS fade is 0.01s-25.5s and the total time amount of current status will be program step time
48 scenes can be used directly.
8 chases and 48 scenes can run at the same time. And 32 scanners can be selected together
The X/Y channels of different fixtures can be controlled by PAN/TILT wheel together.
16 Bit control for PAN/TILT fine adjustment.
15 environment programs to output the combination, which are composed of different scenes, chases and manual output quickly.
The music trigger source can be selected between audio line input or internal microphone.
Easy to learn and operate.
The Data auto-saves. (Through the electronic memory storage and it can be changed freely)
High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the requirement of different country simultaneously.
LED lamp connector
Power input: DC9V 1000mA
Dimension: 498 × 420 × 115mm
Net Weight: 6.5kg
