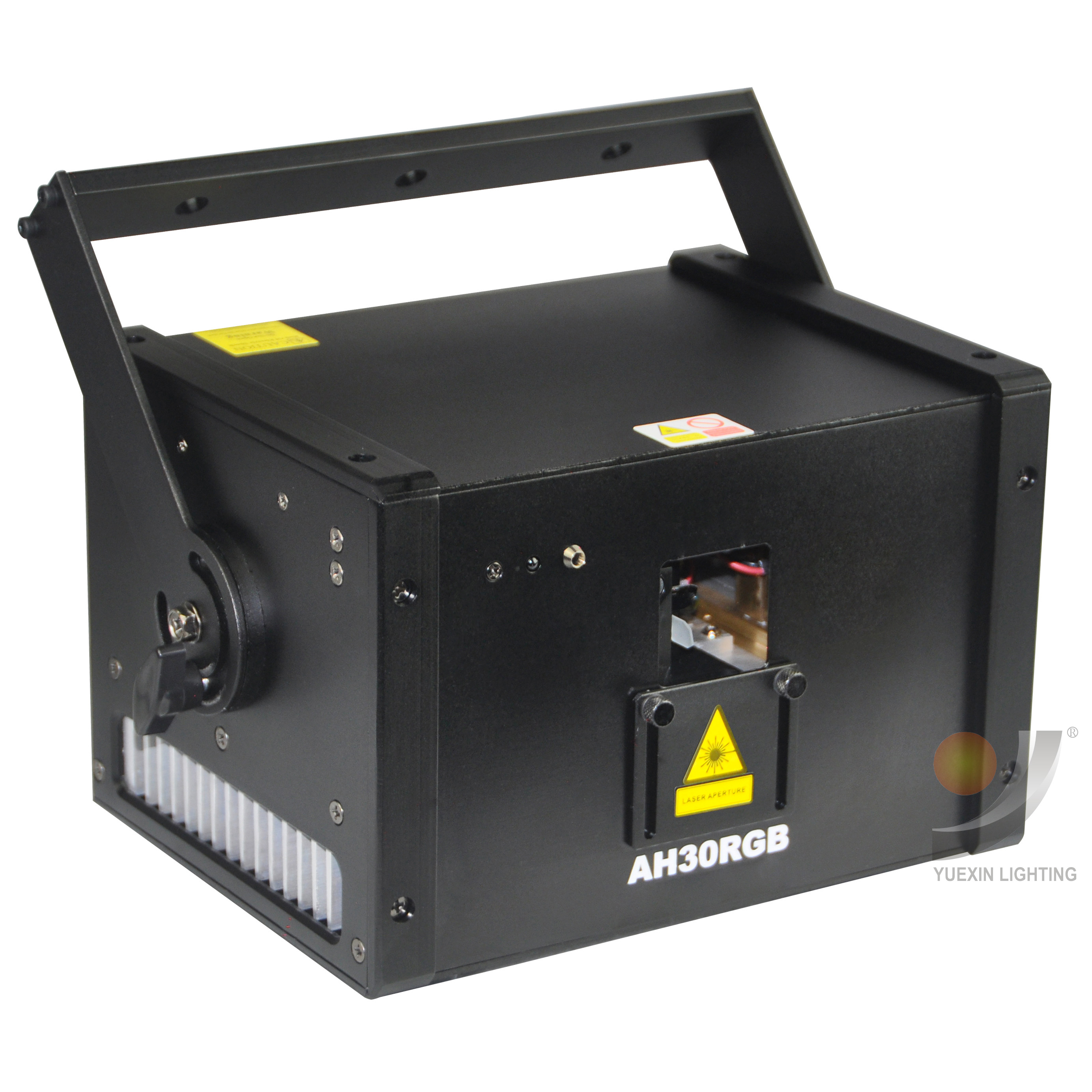

3.2W Animation Laser

PRODUCT SEREIS



Click on Video Link

Desription:

Full pure diode RGB laser with more stable performance and longer working life.
Diode solid-state (DSS) laser is that when power on, the diode will have laser output directly. The working temperature is -10°- 50°. Compared to DSS with wavelength of 520nm, for its structure and production process are more complicated than pure diode, the DPSS with wavelength of 532nm is easily and hugely affected by the environmental temperature (the working temperature: 15°-40°), and its stability is not as good as DSS.
Two floors designs, more compacted and much lighter.
Top floor: Optical and electric components. Dust proof designs, no maintenance costs. Electric components on the top floor, easy to install and replace. The heat is transmitted to the heat sink.
Bottom floor: big heat sink floor. The high speed fans will blow away the heat and keep the machine in good working temperature.
RGB beam diameter and divergence: <5mm, <1.5mrad
Made of analog laser modulation. Users can dimmer the laser brightness linearly to makes the laser light more colorful.

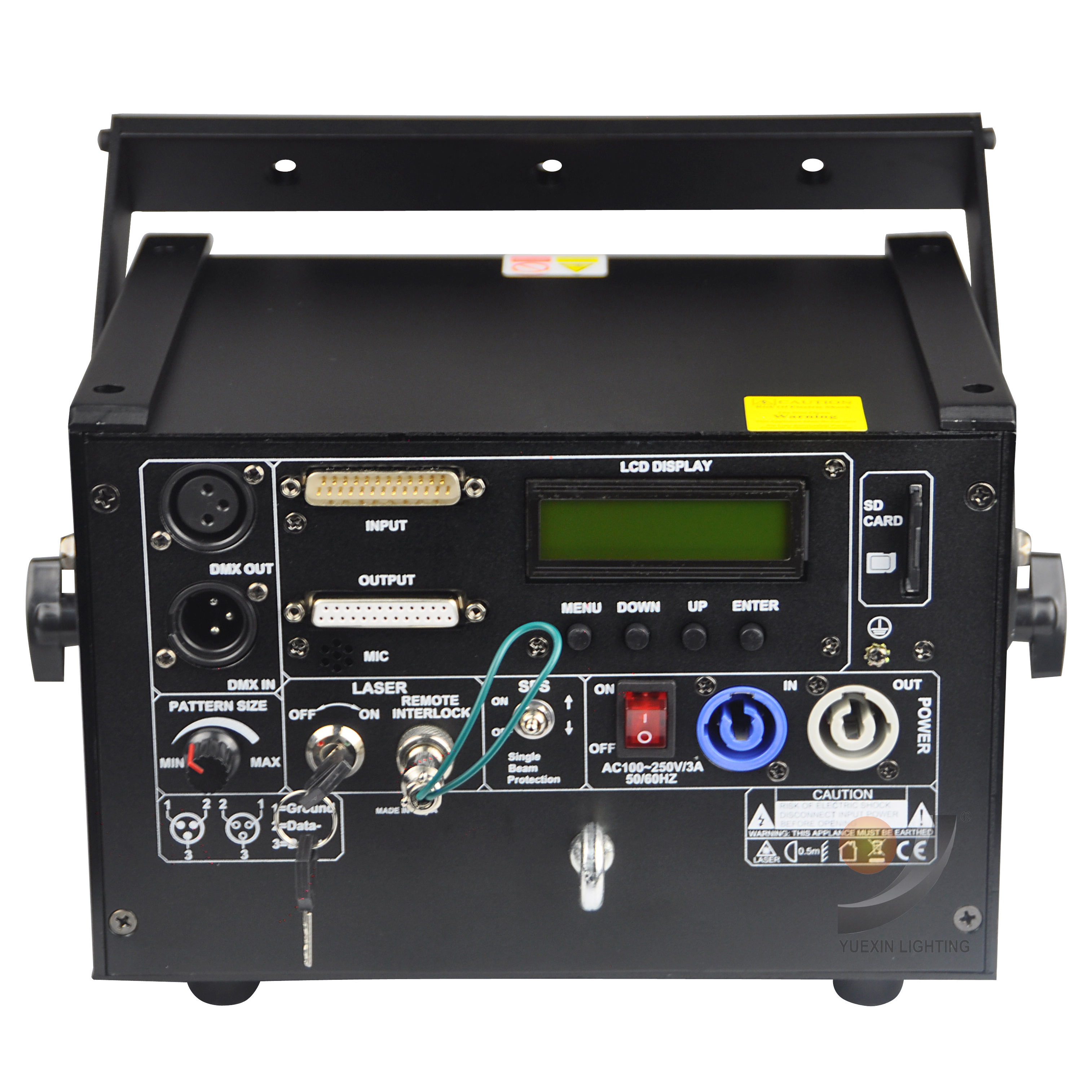

Use LCD display technology, SD card functions. All the pattern sizes, sensitivity, color setting, scanner speed and mirror image, etc are setted by button. Easy to operate and understand. Lower the hardware failure rates.
Play Mode: ILDA PC Control,DMX512 (18 channels),  Sound Active, AUTO, Master/Slave.
PC control: Compatible ILDA laser show software with ILDA interface. Use electronic switches to convert full ILDA signal.
Safety configure: Single Beam Protection System(can switch ON or OFF; single beam protection system is very important system for high power laser lights), Power key switch, laser ON-OFF switch, laser remote interlock, flying rings bolt.
Safety intelligent: Automatically identify ILDA or built-in program mode. Master/slave mode, DMX512 and PC control mode, will shut off laser automatically without trigger signal.the scanner failure protection will shut off the las

Model: YX-AH30RGB
