4W RGB Laser

PRODUCT SEREIS



Desription:

4W RGB Laser
Play Mode: ILDA PC Control,DMX512 (18 channels),  Sound Active, AUTO, Master/Slave.
PC control: Compatible ILDA laser show software with ILDA interface. Use electronic switches to convert full ILDA signal.

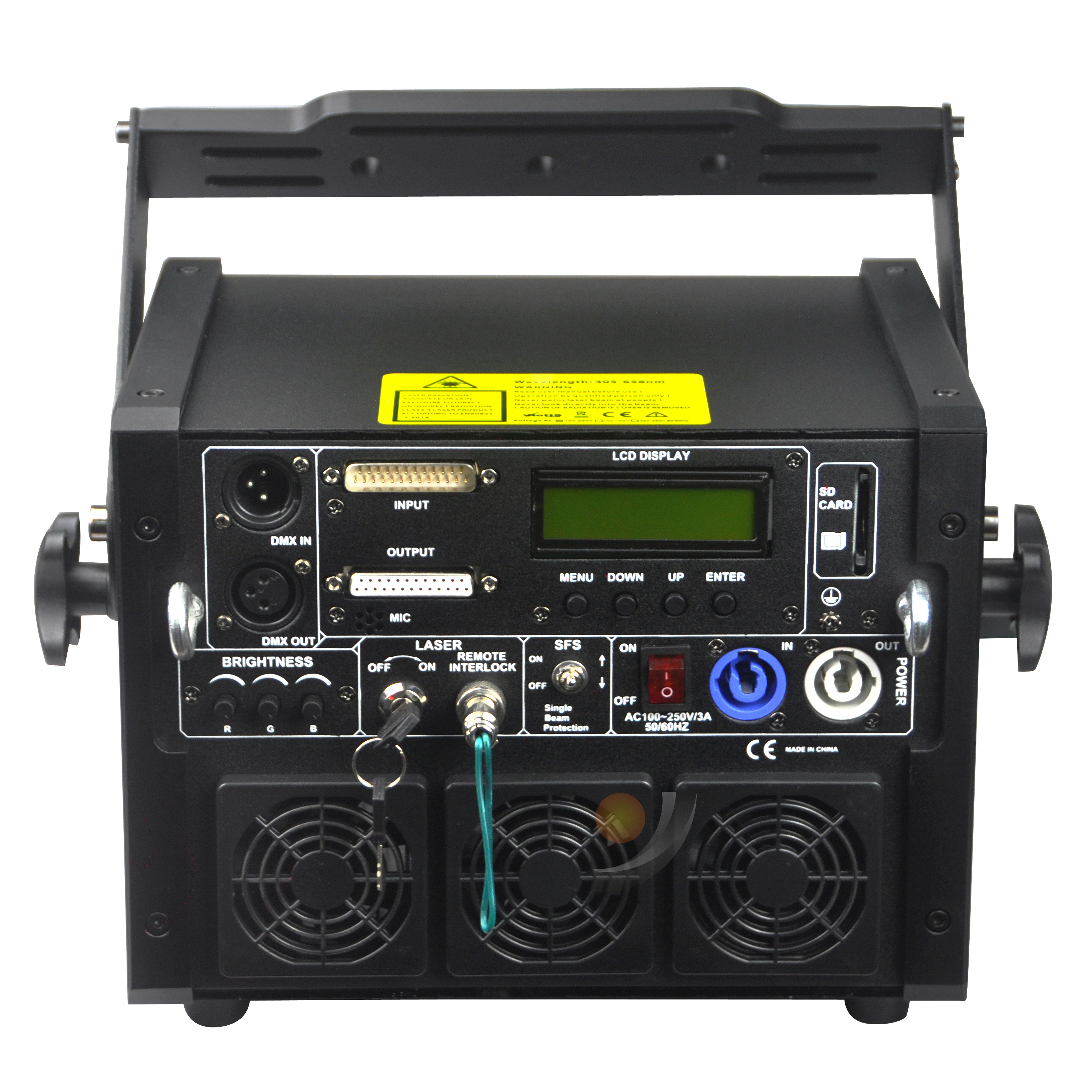

Safety configure: Single Beam Protection System(can switch ON or OFF; single beam protection system is very important system for high power laser lights), Power key switch, laser ON-OFF switch, laser remote interlock, flying rings bolt.
Safety intelligent: Automatically identify ILDA or built-in program mode. Master/slave mode, DMX512 and PC control mode, will shut off laser automatically without trigger signal.the scanner failure protection will shut off the laser signal and the
   shutter will block the laser output automatically, so as to avoid the single beam coming out.
Power Supply: 100~250V, 50/60HZ, 100W
Red Laser: Power:>1000mW, wavelength: 638nm, Beam dia.: 4*5mm,Divergence:<1.2mrad
Green Laser: Power:>1000mW
wavelength: 520nm, Beam dia.: 4*5mm, Divergence:<1.2mrad
Blue Laser: Power:>2000mW, wavelength: 450nm, Beam dia.: 4*5mm, Divergence:<1.2mrad
Scanner: 40KPPS±30°

Model: YX-AH50RGB
