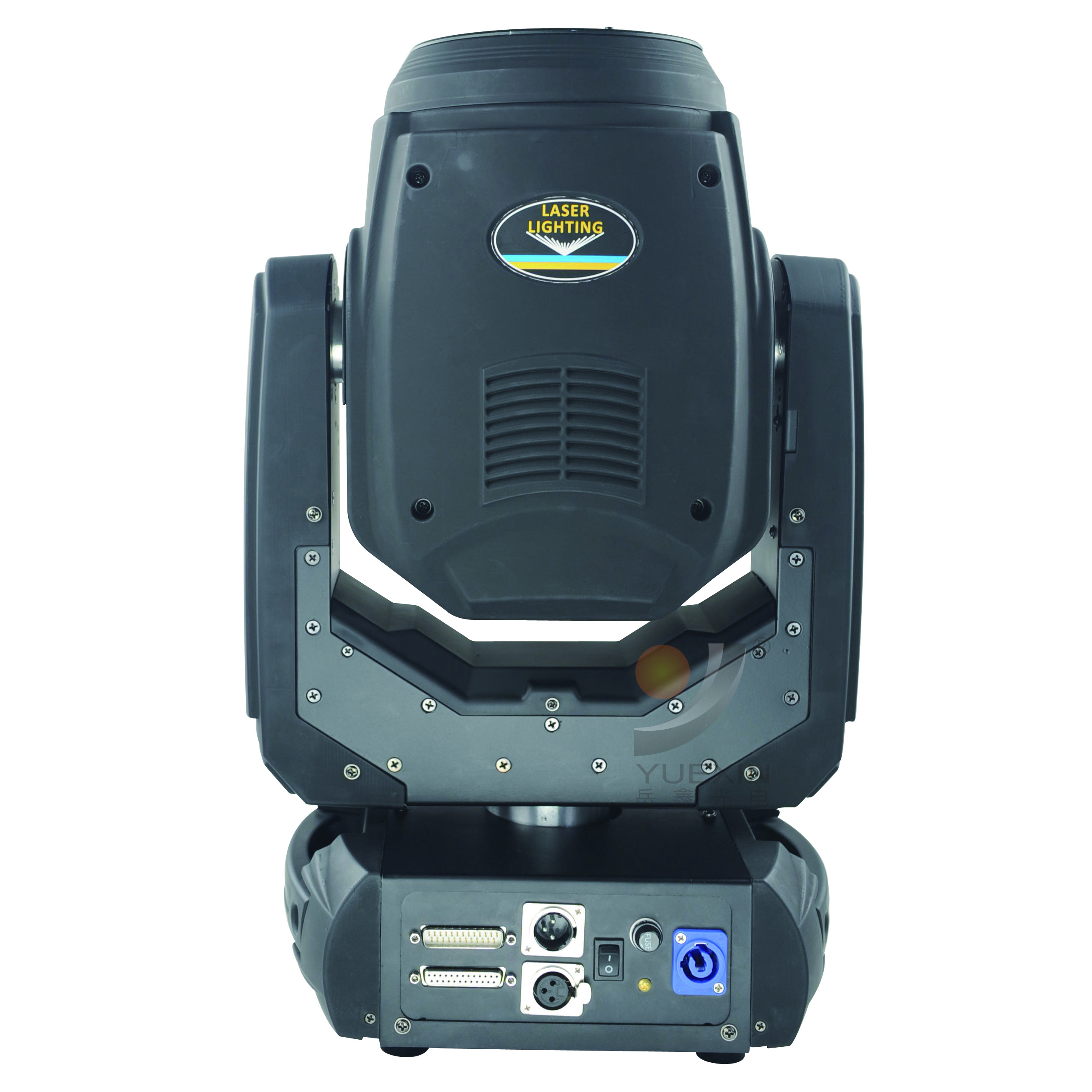

5/8W RGB Moving Head Laser

PRODUCT SEREIS



Click on Video Link

Desription:

Rated Voltage:AC100~240V 50/60Hz Rated Power:<1000W
Configuration: W5000(CNI)R2+G1+B2
LED: 9x10W LED 4 in1
Scanner: 40K high speed module scanner (Can be upgraded to 60K),Scan angle:±30°;Input signal:±5V;Linearity distortion<2%)
Motor: Three-phase stepper 57 motor  2Pcs
Pan/Tilt:X axis 540°Y axis 270°
Modulation:analog
Beam diameter and Divergence : 5mm;<2mrad
◎Control Modes: Music four mode with black out)/Automatic/Master-Slave/DMX512(25CH)
Demonstration effect:Built-in 144 pattern
DMX effect: Single pattern modes,and with the function of unique blanking,strobing, rotating, movement, billowing, zoom,drawing,speed and color etc.
Security Intelligent function: no signal no emit,Key power,signal is changed automatically(PC to DMX or DMX to PC),Quick Channel, one of the product channels, SD card update online.
Operating requirement: dry, less dust, 10~40℃(environmental temperature) ,will reduce the attenuation of the diode and extend the life of the light.
Application:Disco, Clubs, KTV, Pub, Vocal concert,Television Station,stadium,Advertising promotion etc.
Size:39*25*58cm
N.G:13KG
G.W:14.5KG

Model: YX-LY2
