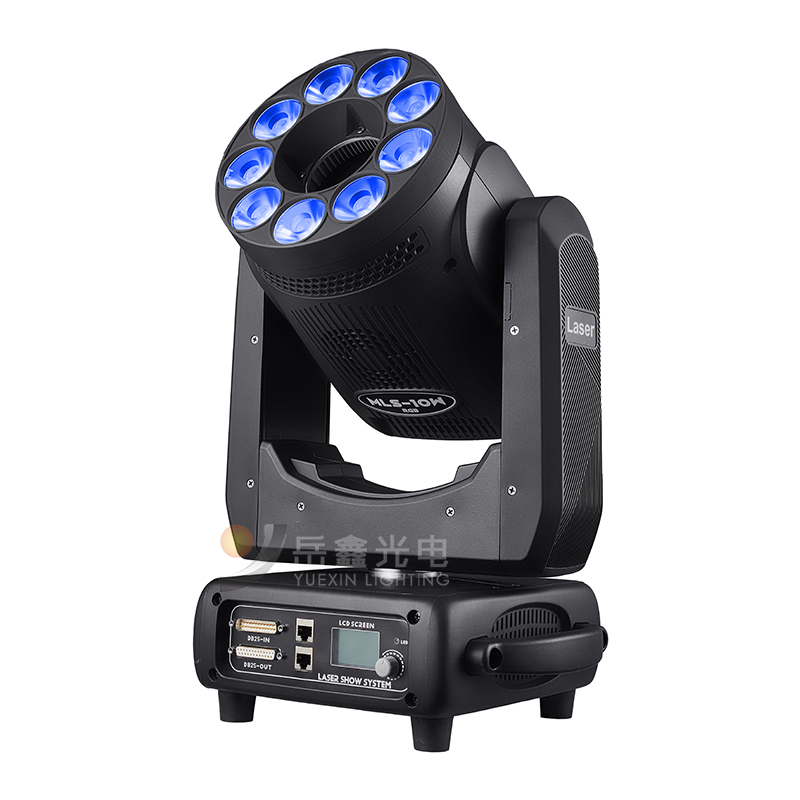

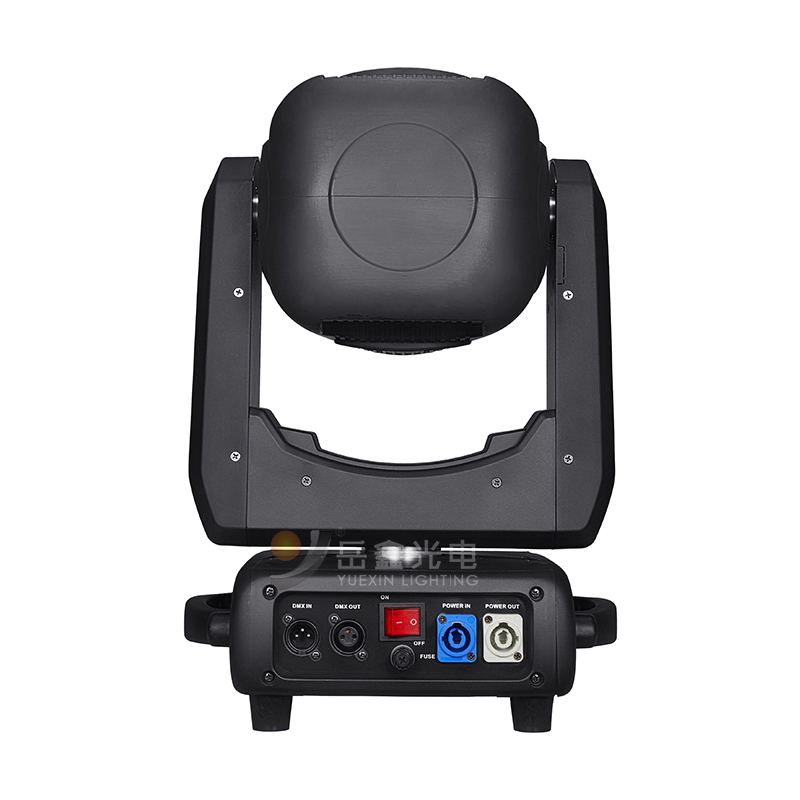

5W/10W shaking head laser+LED wash light

Description:

Rated voltage: AC110-220V
Shaking head laser +LED dye light
Rated frequency: 50 ~ 60Hz
Rated power: 300W
Laser color: RGB full color
Laser power: RGB 10W
Laser light source: R3w/638nm G3w/525nm B4w/447nm
Laser pattern: 256 laser animation pattern
Modulation signal: TTL modulation (analog modulation)
Scanning system: galvanometer scan 30KPPS
Scanning Angle: plus or minus 20 degrees
Stepper motor: two phase 57 motor 2
Horizontal: 540 degrees Vertical: 270 degrees
LED dyeing configuration: 9 20W four-in-one high brightness LED lamp beads
Control mode: DMX512, voice control, self-walking, computer ILDA interface, cable Art-Net,
Control channels: 30 DMX512 control channels
DMX special effects: single pattern mode, can be broken pen, stroboscopic, rotating, moving, tumbling, subgraph, gradually drawing, color change, change the size and other functions.
Function: Pangolin QSFB3/FB4 or fire Phoenix laser software control.
ilda control uses an automatic electronic transfer switch with scanning system error protection and laser light protection.
Notice for use: The ambient temperature is controlled at 0~35 ° C, and the dry and dust-less environment can reduce the laser power attenuation and extend the life of the lamp
Suitable place: disco bar, bar, nightclub, concert, advertising promotion, etc
Cooling system: fan forced cooling
Light Size: 32x25.5x52cm
N.W:11KG
Carton Size:55.5*38*43cm
G.W:14KG
