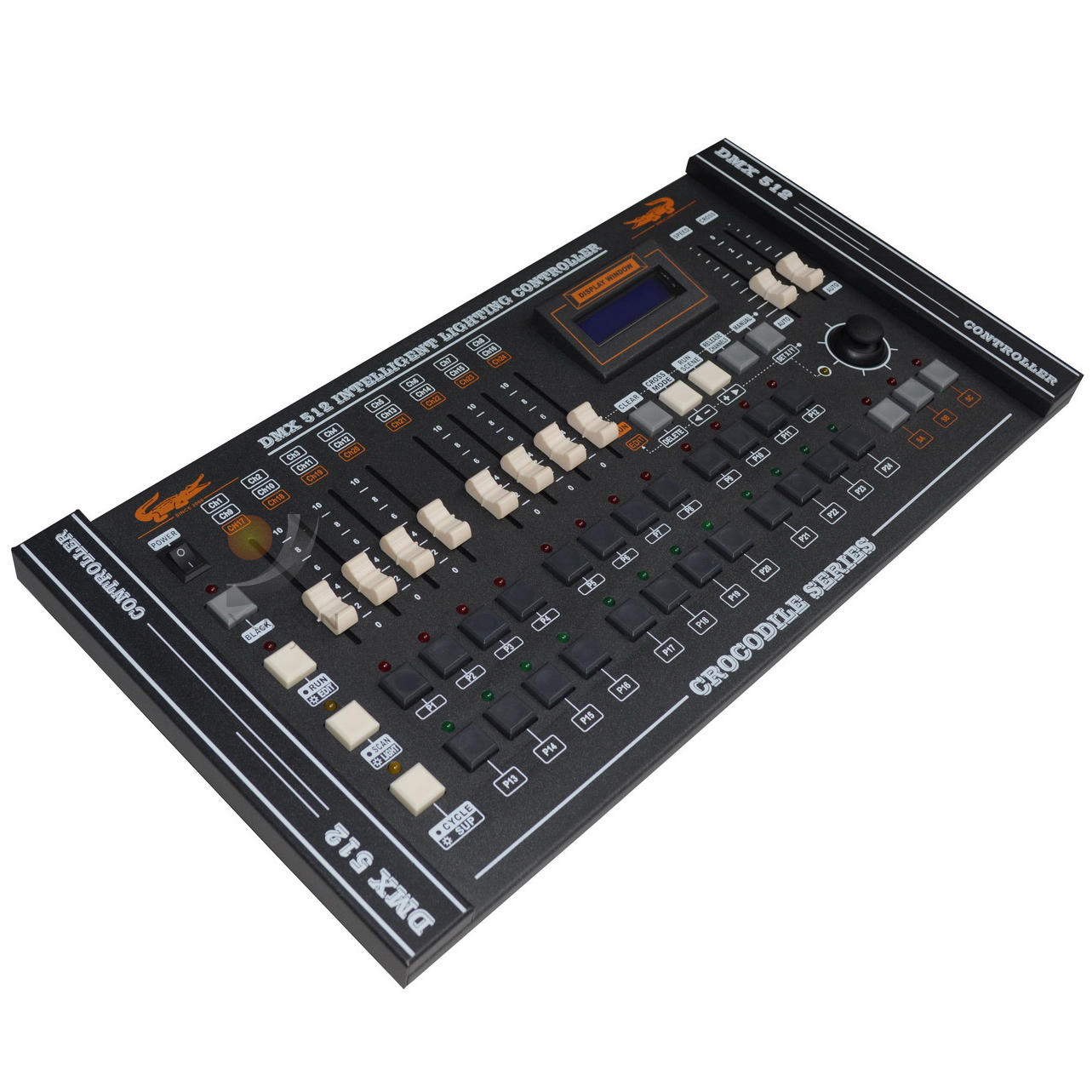

CROCODILE 2416 Console

PRODUCT SEREIS



Desription:

DMX512/1990 Standard 408 channels
LCD display with backlight Up to 24 scanners may be connected with a maximum of 16 channels each 24 Dimmer channels
8 slider for manual control of channels
Assignable joystick for ease of movement
24 chases run in circularly, Max 40 steps each chase
Can run 8 chases simultaneously
960 chase steps
Range of cross time: 0s-25.5s
Range of speed time: 0.1s-25.5s
Each chase speed and cross time can be saved automatic
512K high capacity memory card
The Data auto-saves

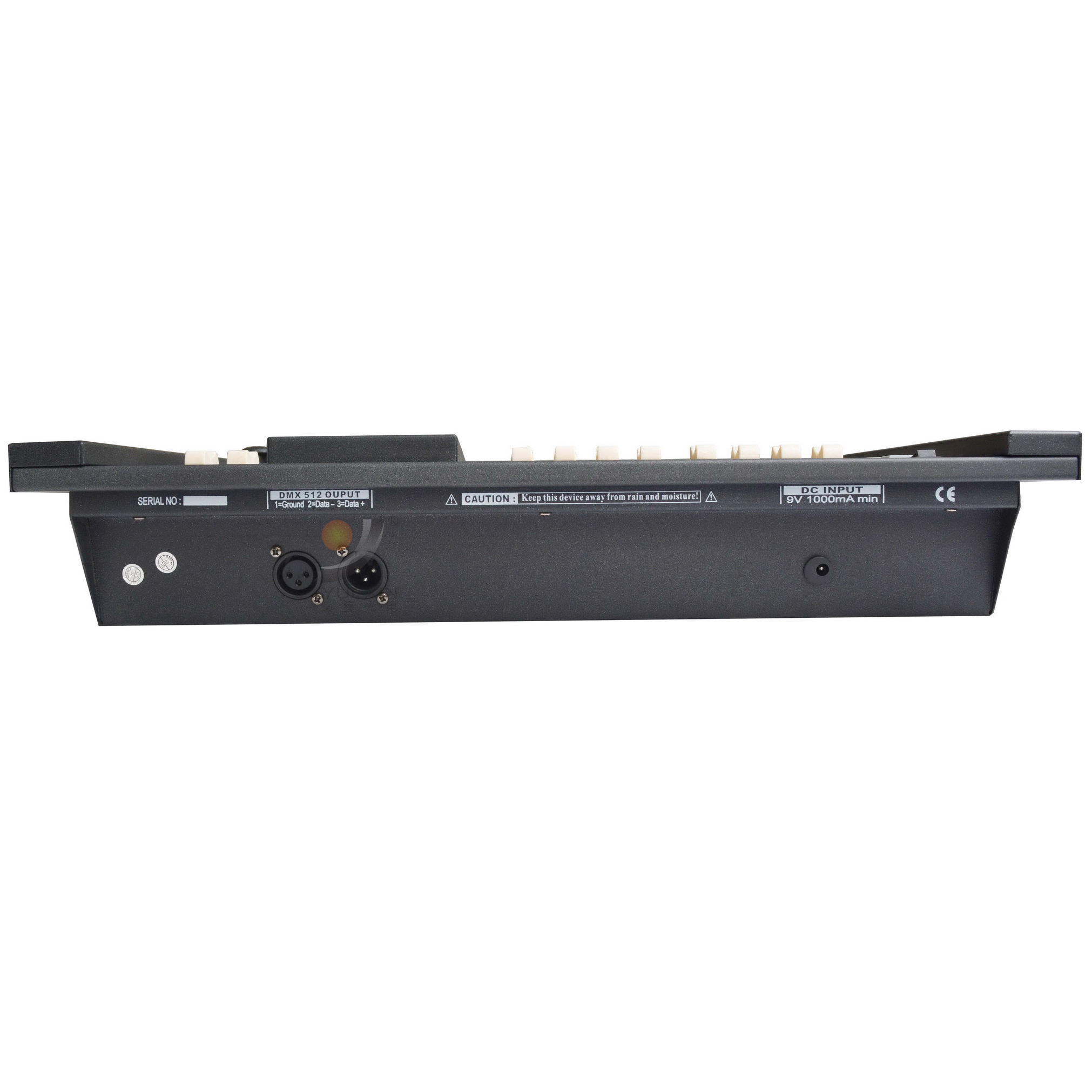

DMX signal output connector: XLR-D3F
Power supply: DC9V  1000mA
Dimension: 485mm×250mm×91mm
Net Weight: 3.8Kg

Model: YX-CL1302
